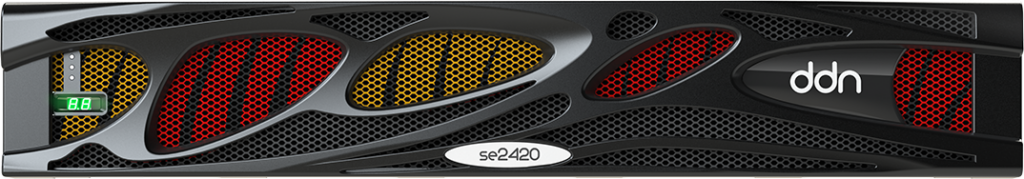

DDN SE2420

Unlock the full potential of your data with DDN’s QLC backed solutions with industry leading performance. Whether you prioritize high-bandwidth throughput, IOPS, or low latency, the capacity expansion enabled by ES400NVX2 systems coupled with SE2420 enclosure with QLC is perfect for AI, machine learning, and real-time applications.

The EXAScaler parallel file system with data compression capabilities and high capacity QLC storage drives a dramatic reduction in the total cost of ownership through reduced data center components, power consumption and management costs.

ES400NVX2 systems with QLC storage in SE2420 enclosures address performance, endurance and implementation complexity challenges, while enabling unmatched scale-out performance with architectural simplicity.

With up to 1.4 PB QLC (raw) per 2U enclosure, a single rack can easily fit 20 PB of QLC, providing the best value per flash capacity, while also delivering up to 21 million random read IOPS in a single rack. A compact configuration can deliver up to 90 GB/s read bandwidth, and 70 GB/s write bandwidth; a full rack can deliver up to 630 GB/s read bandwidth and 490 GB/s write bandwidth.

That’s more than 10x faster writes, 10x faster performance/watt, and 10x faster performance/RU than other QLC systems.

Technical Specification

SYSTEM DETAILS
DRIVE SLOTS 24 U.2 form factor
IO MODULES 12x QSFP 28/56 ports; 6 ports on each of the two I/O modules
HEIGHT 2U rack mount (87mm)
WIDTH 450mm (17.75”; EIA-310 19” rackmount)
DEPTH 597mm (23.5” ; without bezel)
WEIGHT (WITHOUT DRIVES) 22.9 kg (50.5 lbs)
WEIGHT (WITH 24 DRIVES) 29.6 kg (65.3 lbs)
NOTIFICATIONS & MONITORING
ENCLOSURE MANAGEMENT In-band
LCD DISPLAY Enclosure Number Display
LED INDICATORS Chassis: Power, Fault, Location; Drive: Activity, Fault; IOM: Power, Fault, Link, Activity
SAFETY/REGULATORY CSA, EMI, FCC Class A, CE, CCC, TUV-GS, CB, CE, VCCI
POWER & COOLING
POWER SUPPLIES 2 PSUs (N+1)
PSU RATINGS 1600W Max
INPUT POWER 200-240 VAC – 50/60 Hz
EFFICIENCY 80 Plus® Platinum compliant
COOLING MODULES 6 fan modules per I/O module
ENVIRONMENTAL OPERATING NON-OPERATING
TEMPERATURE 10°C TO 35°C (50°F TO 95°F)
Derate 1°C per 300m above 950m altitude
-40°C TO 70°C (-40°F TO 158°F)
ALTITUDE 3,048m (10,000 ft) max 10,668m (35,000 ft) max
RELATIVE HUMIDITY
(non-condensing; ASHRAE A2)
8% to 80%
